RTH 6.35 SH

  • lifting weight6,000 kg
  • lift height34.70 m

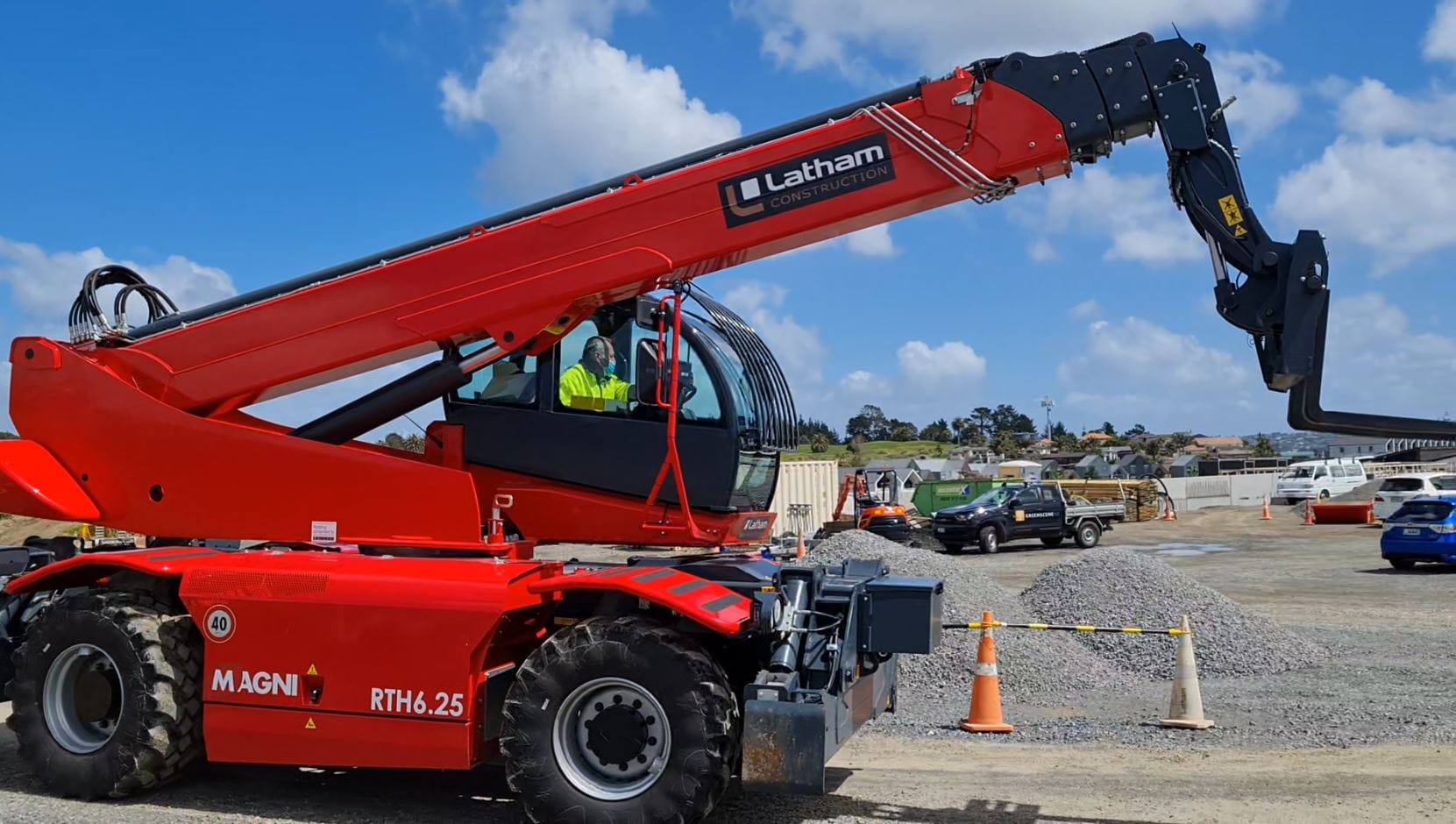

magni rotating telehandler 6.35 SHThe RTH 6.35 is a tough, high-performance rotating telescopic handler. It can lift loads up to a height of 35 m, and is equipped with scissor stabilisers to ensure greater safety and stability during working manoeuvres. The scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side. When the stabilisers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.

Technical Features

  • Stabilizers: scissor
  • Lifting capacity: 6,000 kg
  • Capacity at maximum height: 3,000 kg
  • Lifting height: 34.70 m
  • Reach: 27.00 m
  • Engine: Mercedes OM 934 LA Stage IV
  • Rated power: 170 kW – 231 cv
  • Number of gears: 2/2
  • Hydraulic system: Load Sensing 350 bar
  • Length: 8 m
  • Width: 2.50 m
  • Ground clearance: 320.00 mm
  • Empty weight: 23,870 kg
  • Travel speed: 40.00 Km/h
  • Rotation: 360°
  • Climate control as standard: Yes
  • Automatic accessory recognition: Yes

Regulations

  • CE certificate
  • EN 1459-2: concerning standards for slewing variable-reach trucks
  • EN 280: concerning standards for mobile elevating work platforms
  • EN 13000: concerning standards for hydraulic cranes
  • FOPS/ROPS
  • UE 2016/1628: concerning engine emissions standards
