RTH 6.39

  • lifting weight6 Ton
  • lift height39 m
  • engine hp238 hp
  • stabilizer legs
  • joystick control

magni rotating telehandler 6-39 SHThe RTH 6.39 is a rotating telescopic handler designed for use with heavy and bulky loads. Its 39 m lifting height makes it extraordinarily effective on construction or industrial sites requiring high reach and lifting capacities. The inclination corrector and scissor stabilisers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all terrain in order to ensure maximum operator safety. The scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side. When the stabilisers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.

Technical Features

  • Stabilizers: scissor
  • Lifting capacity: 6,000 kg
  • Capacity at maximum height: 2,300 kg
  • Lifting height: 38.90 m
  • Reach: 27.00 m
  • Engine: Volvo TAD 583 VE – Stage V
  • Rated power: 175 kW – 238 hp
  • Number of gears: 2/2
  • Hydraulic system: Load Sensing 350 bar
  • Length: 8.59 m
  • Width: 2.50 m
  • Ground clearance: 320.00 mm
  • Empty weight: 23,850 kg
  • Travel speed: 40,00 Km/h
  • Rotation: 360°
  • Climate control as standard: Yes
  • Automatic accessory recognition: Yes

Regulations

  • CE certificate
  • EN 1459-2: concerning standards for slewing variable-reach trucks
  • EN 280: concerning standards for mobile elevating work platforms
  • EN 13000: concerning standards for hydraulic cranes
  • FOPS/ROPS
  • UE 2016/1628: concerning engine emissions standards

Attachments Catalogue             RTH Machines in action                      Magni Options

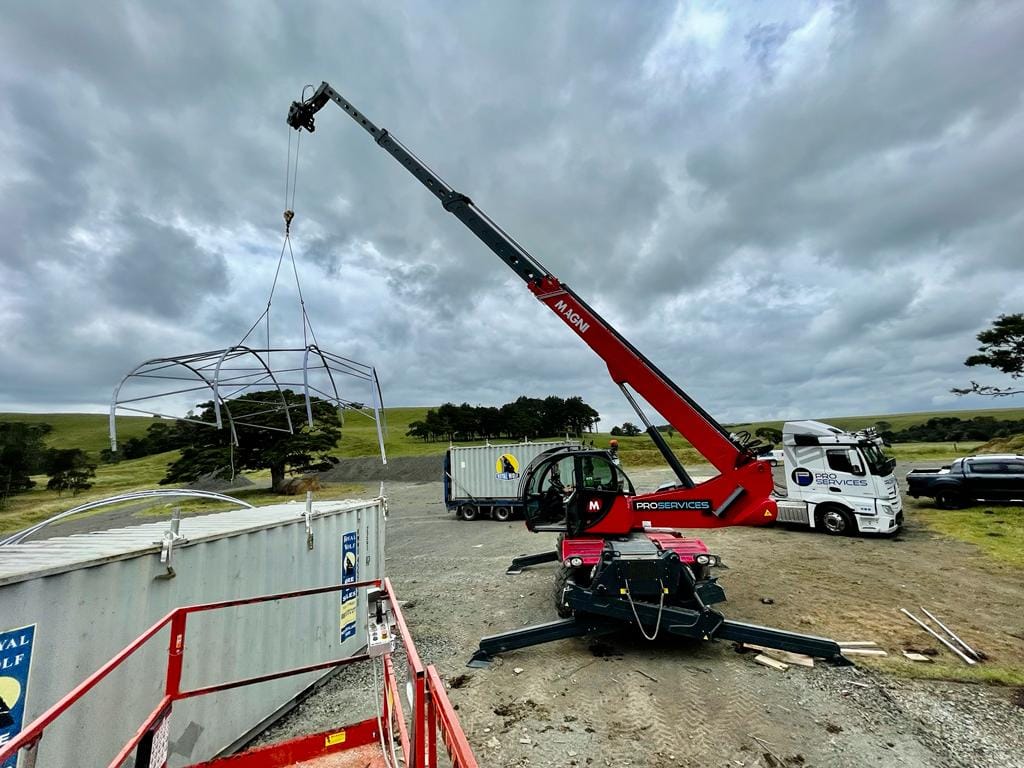

RTH Telehandlers in action
