7 Ton
26 m
218 hp
Magni RTH 7.26 Rotating Telehandler
The RTH 7.26 is a tough, high-performance rotating telescopic handler. It can lift loads up to a height of 26 m, and is equipped with scissor stabilisers to ensure greater safety and stability during working manoeuvres. The scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side. When the stabilisers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.
TECHNICAL FEATURES
- Stabilizers: scissor
- Lifting capacity: 7,000 kg
- Capacity at maximum height: 3,200 kg
- Lifting height: 25.70 m
- Reach: 22 m
- Engine: Volvo TAD 582 VE -Stage 5
- Rated power: 129 kW – 218 hp
- Number of gears: 2/2
- Hydraulic system: Load Sensing 350 bar
- Length: 7.71 m
- Width: 2.56 m
- Ground clearance: 323 mm
- Empty weight: 20,700 kg
- Travel speed: 41 km/h
- Rotation: 360°
- Climate control as standard: Yes
- Automatic accessory recognition: Yes
REGULATIONS
- CE certificate
- EN 1459-2: concerning standards for slewing variable-reach trucks
- EN 280: concerning standards for mobile elevating work platforms
- EN 13000: concerning standards for hydraulic cranes
- FOPS/ROPS
- UE 2016/1628: concerning engine emissions standards
Attachments Catalogue RTH Machines in action Magni Options

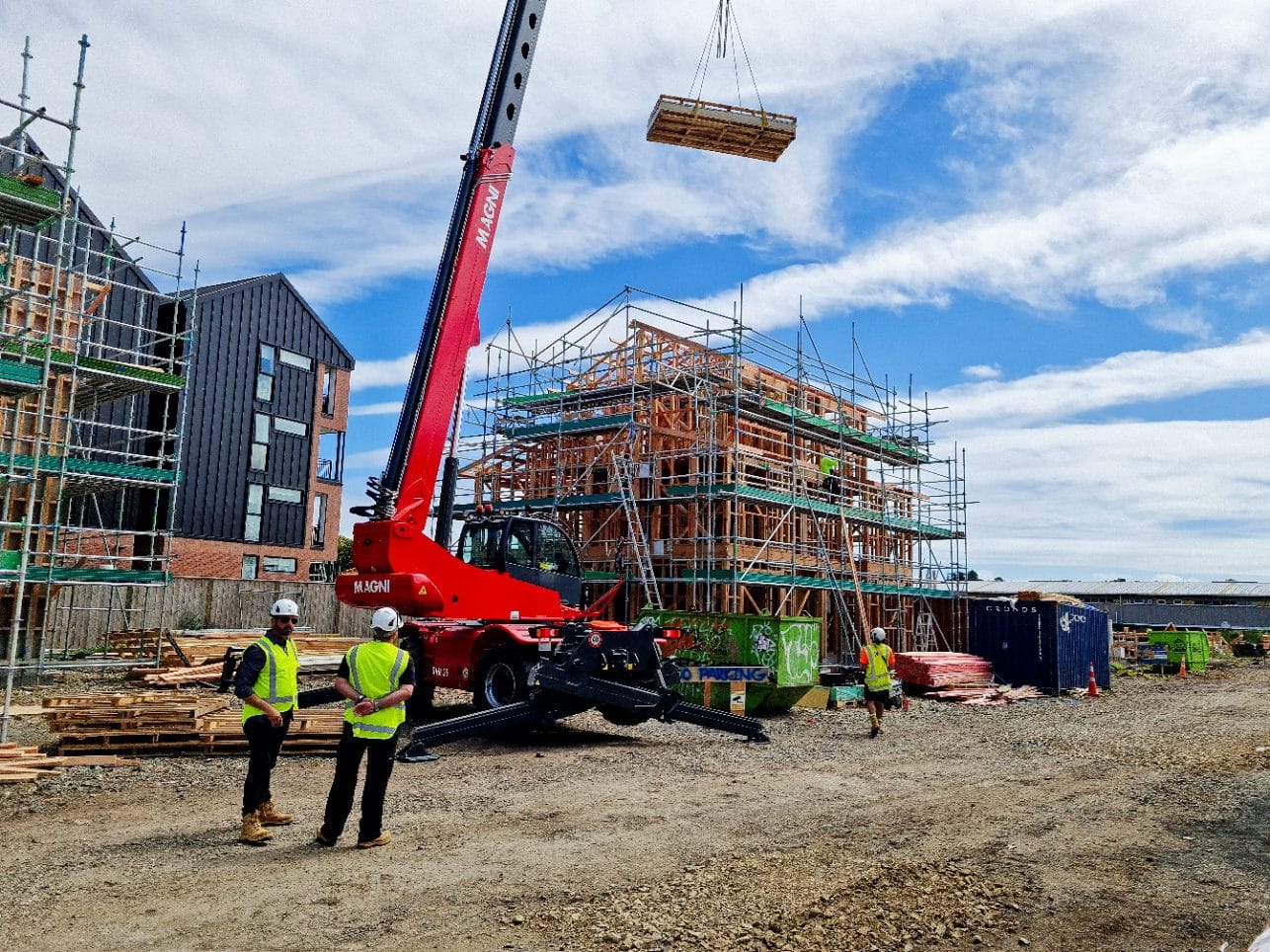

RTH Telehandlers in action
