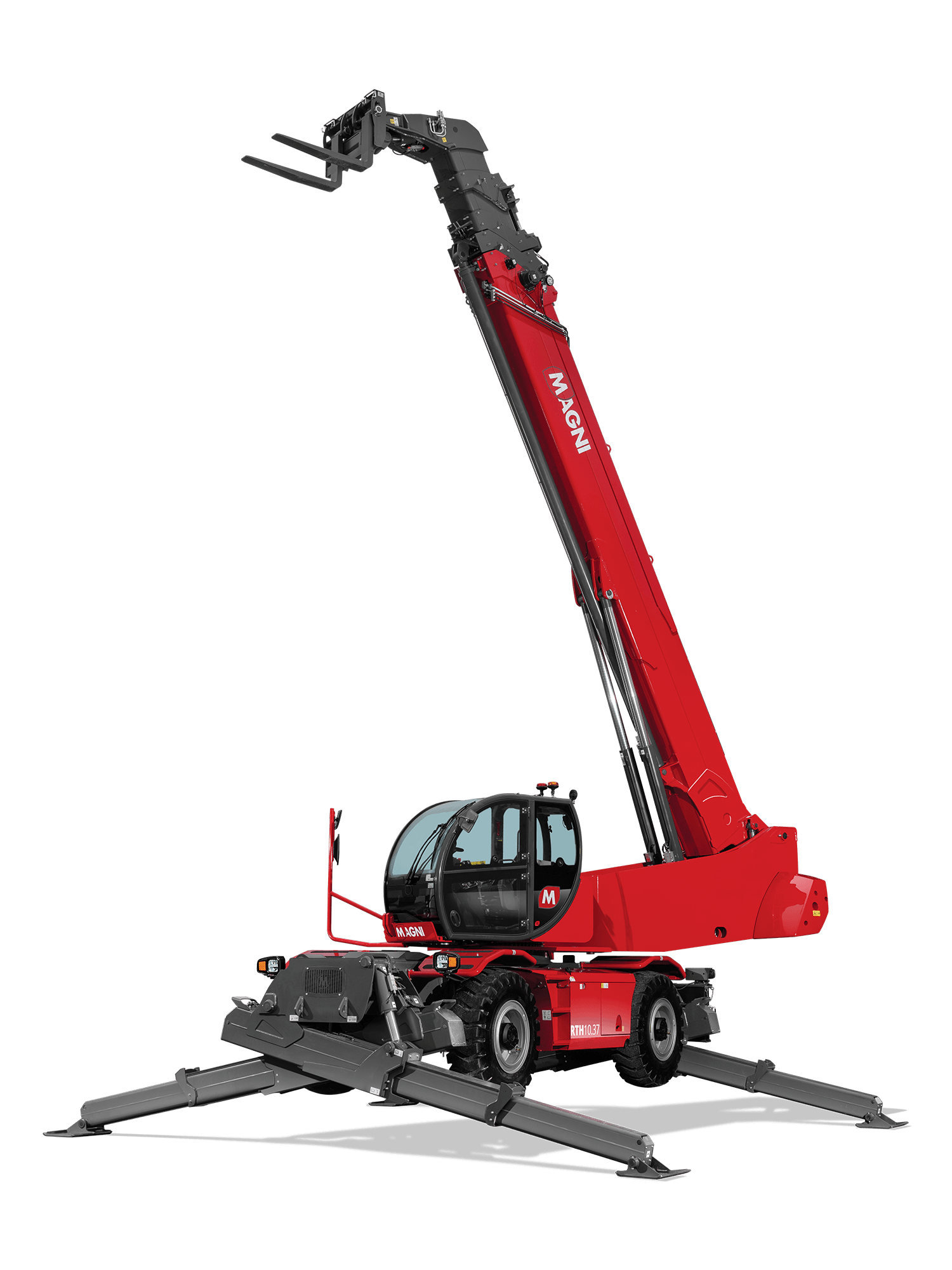

10.3 TON

36M

238 HP

SELF LEVELING
- Stabilisers: Scissors
- Lifting capacity: 10,300 kg
- Capacity at maximum height: 8,000 kg
- Lifting height: 36.70 m
- Reach: 17.40 m
- Engine: Volvo TAD 583 VE – Stage V
- Rated power: 175kW 238hp 2300rpm
- Number of gears: 2/2
- Hydraulic system: 350 bar (Load Sensing)
- Length: 8.9 m
- Width: 2.5 m
- Ground clearance: 340 mm
- Unladen weight: 36,900 kg
- Travel speed: 40 km/h
- Rotation: 360° (continuous)
- Climate control as standard: Yes
- Automatic accessory recognition: Yes
2006/42/CE EU Machinery Directive
2016/1628 EU regulation on the emissions of Stage V engines
EN 1459-X Relating to standards on the safety requirements for variable reach machines
EN 280-1/EN 280-2 Standards relating to mobile elevating work platforms (if available)
ROPS/FOPS Level 2 Relating to the standards for protective structures
