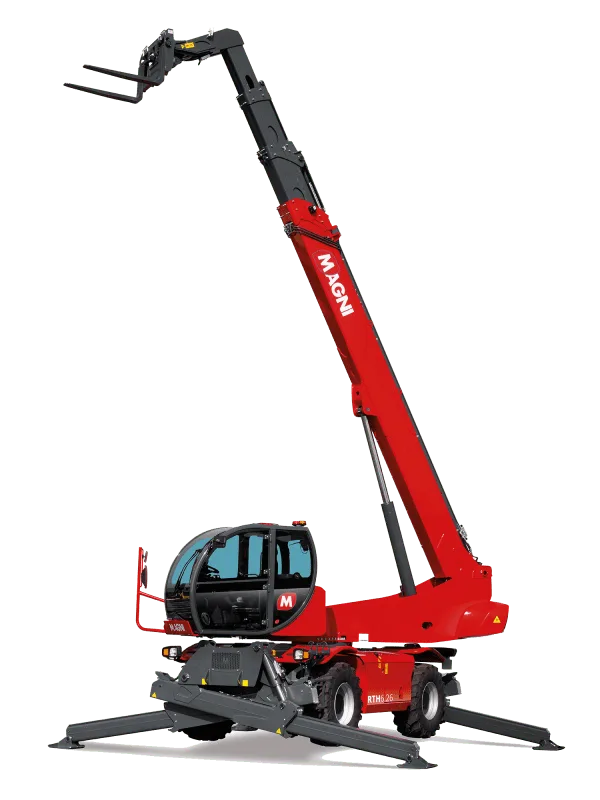

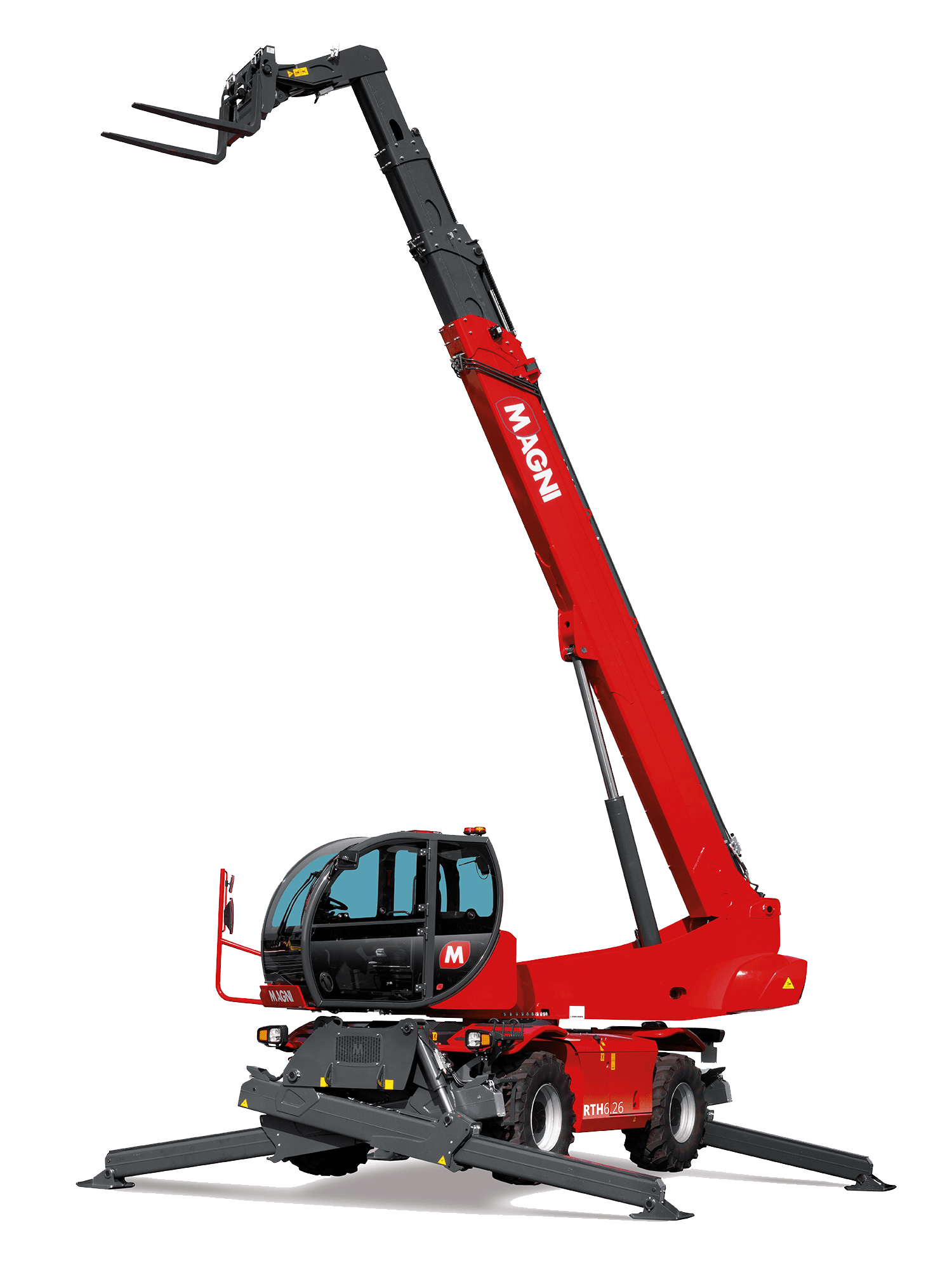

6 TON
26M
136 HP
SELF LEVELING
- Stabilisers: Scissors
- Lifting capacity: 6,000 kg
- Capacity at maximum height: 3,500 kg
- Lifting height: 25.80 m
- Reach: 22.20 m
- Engine: Deutz TCD 3.6 L4 Stage V
- Rated power: 100 kW (136 hp) 2,200 rpm
- Hydraulic flow: 130 l/min
- Number of gears: 2/2
- Hydraulic system: 350 bar (Load Sensing)
- Length: 7.85 m
- Width: 2.53 m
- Ground clearance: 330 mm
- Unladen weight: 19,600 kg
- Travel speed: 40 km/h
- Rotation: 360° (continuous)
- Climate control as standard: Yes
- Automatic accessory recognition: Yes
- EN 1459-2 : concerning standards for slewing variable-reach trucks
- EN 280 : concerning standards for mobile elevating work platforms
- FOPS Level 2/ROPS
- UE 2016/1628 : concerning engine emissions standards
