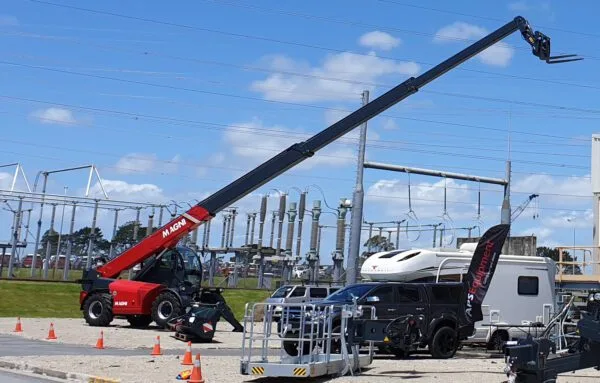

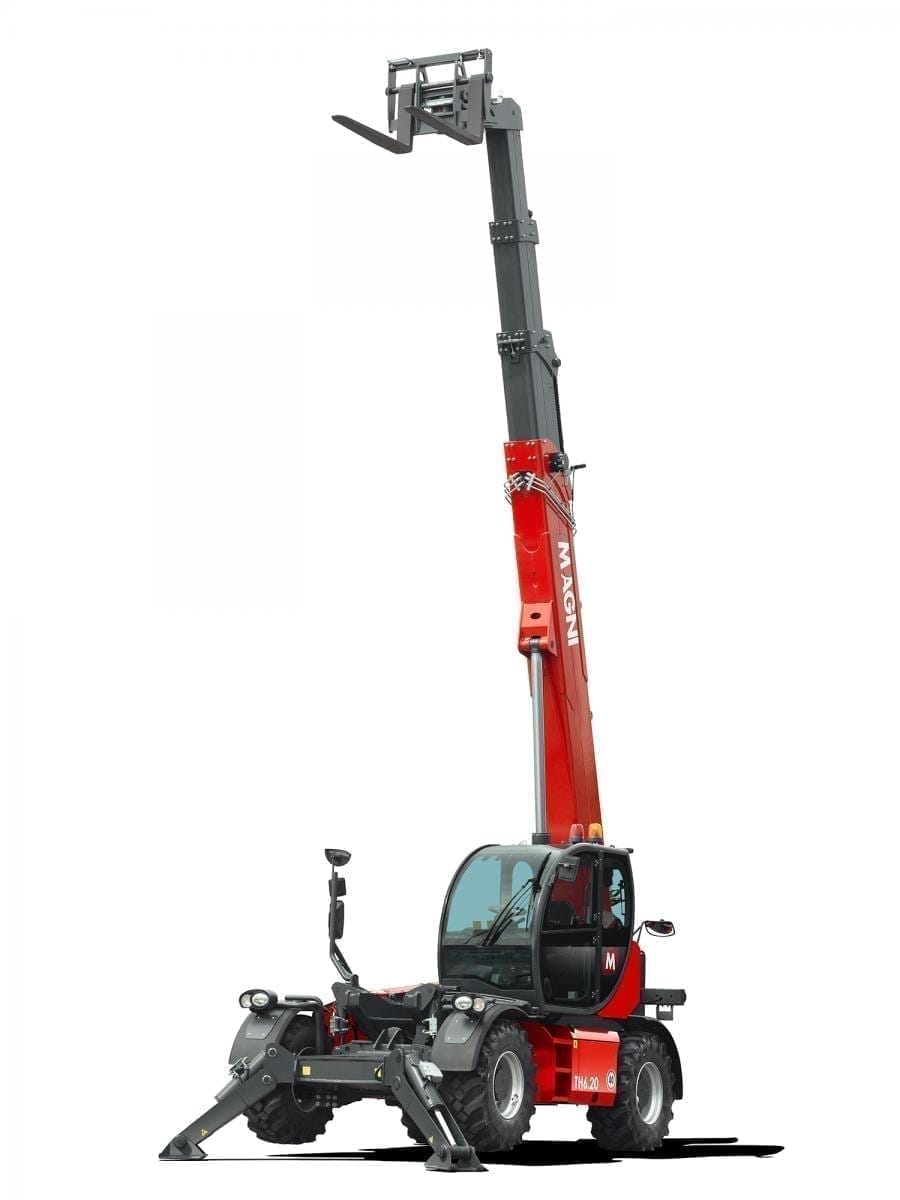

Magni TH 6.20 Telehandler
The TH 6.20 is a telescopic handler suited to demanding sites. It can reach 20m in height in complete safety, even on rough terrain thanks to its automatic levelling – which acts on both the wheels and stabilisers – and its four-wheel drive system. The hydrostatic transmission offers precision and manoeuvrability. It is compatible with a huge range of accessories, and is equipped with the RFID system which provides automatic recognition of attachments and creation of the relative load charts. It is equipped with a side shift function, allowing the rear section of the chassis along with the telescopic boom to move laterally with respect to the machine’s longitudinal axis in order to correct the position of the load without having to move the vehicle. This function offers a lateral shift of +/- 5°, which corresponds to a +/- 1.5 m movement of the boom when fully extended, regardless of the attachment fitted. As this model is EN 13000 compliant, it can be equipped with a winch and thus work with suspended loads.
Available for long term hire or lease
Technical Features
- Lifting capacity: 6,000 kg
- Capacity at maximum height: 2,300 kg
- Lifting height: 19.20 m
- Reach: 14.60 m
- Engine: Deutz TCD 3.6 L4 – stage IV
- Rated power: 100 kW – 134 cv
- Number of gears: 2/2
- Hydraulic system: Load Sensing 350 bar
- Length: 6.50 m
- Width: 2.50 m
- Ground clearance: 2,50 mm
- Unladen weight: 14,500 kg
- Travel speed: 40 Km/h
- Climate control as standard: Yes
- Automatic accessory recognition: Yes
