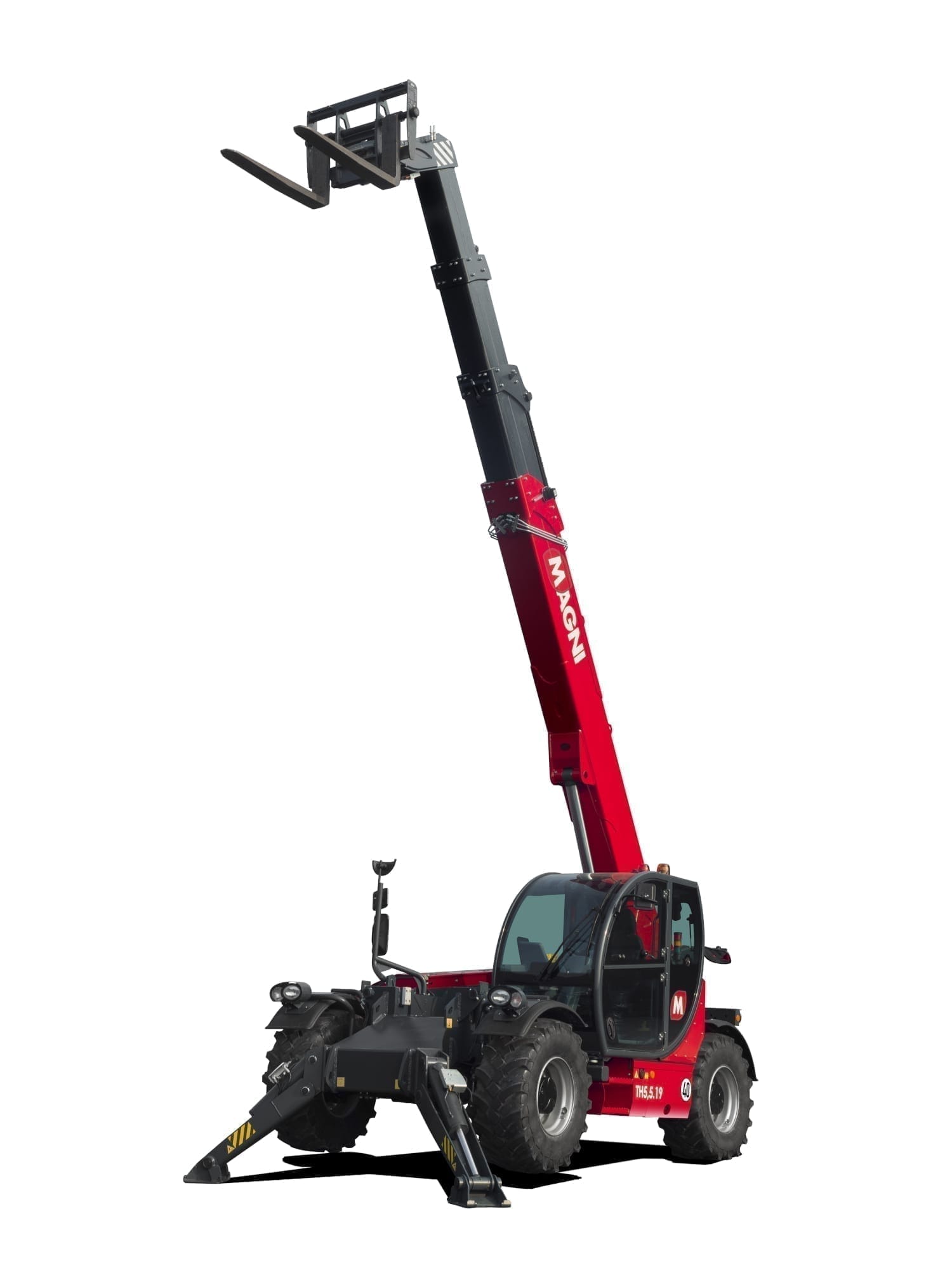

Magni TH 5,5.19P Telehandler
The TH 5,5.19P is a premium telehandler for construction worksites. It can reach 18.90m in height in complete safety, even on rough terrain thanks to its automatic levelling – which acts on both the wheels and stabilisers – and its four-wheel drive system. The hydrostatic transmission offers precision and manoeuvrability. It is compatible with a huge range of accessories, and is equipped with the RFID system which provides automatic recognition of attachments and creation of the relative load charts. It is equipped with a side shift function, allowing the rear section of the chassis along with the telescopic boom to move laterally with respect to the machine’s longitudinal axis in order to correct the position of the load without having to move the vehicle. This function offers a lateral shift of +/- 5°, which corresponds to a +/- 1.5 m movement of the boom when fully extended, regardless of the attachment fitted. As this model is EN 13000 compliant, it can be equipped with a winch and thus work with suspended loads.
Available for long term hire or lease
Technical Features
- Lifting capacity: 5,500 kg
- Lifting height: 2,000kg
- Capacity at max height: 18.80 m
- Engine: Deutz TCD 3.6 L4 – Stage V
- Rated power: 101 hp
- Number of gears: 2/2
- Hydraulic system: Load Sensing 350 bar
- Length: 6.39 m
- Width: 2.53 m
- Unladen weight: 14,100 kg
- Travel speed: 35 km/h
- Air Conditioning: Yes
- Automatic accessory recognition: Yes
ENQUIRE TO HIRE
