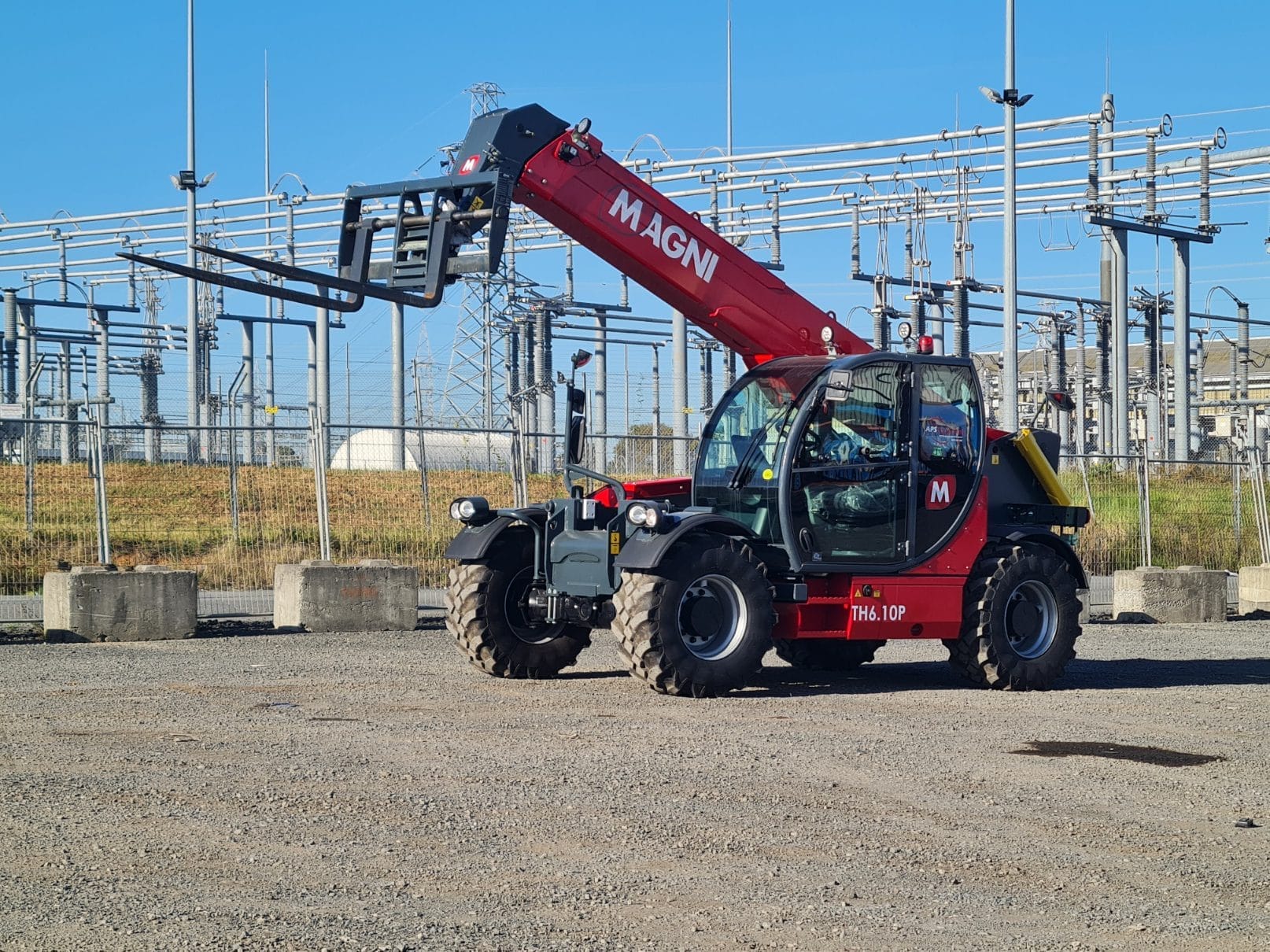

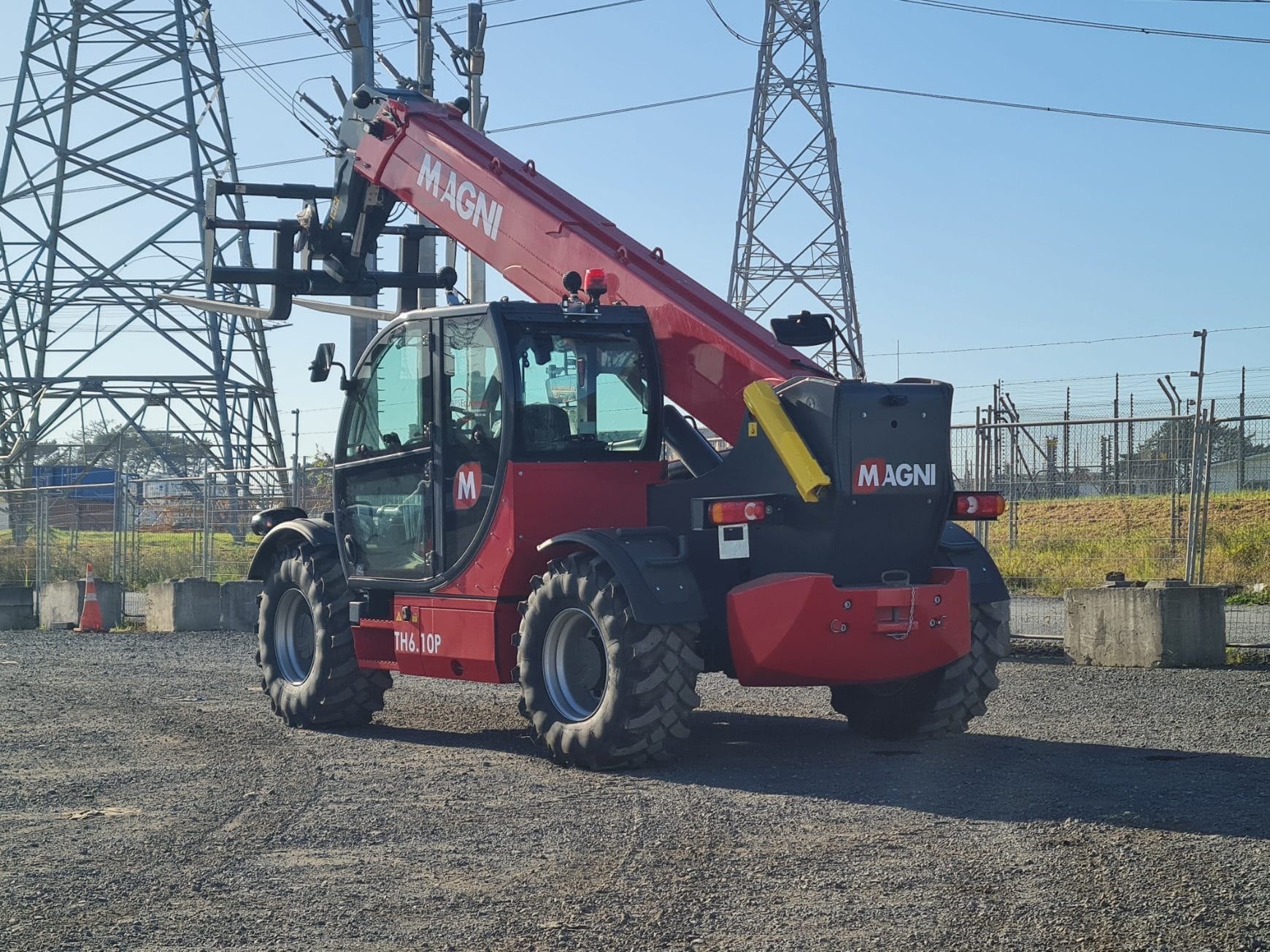

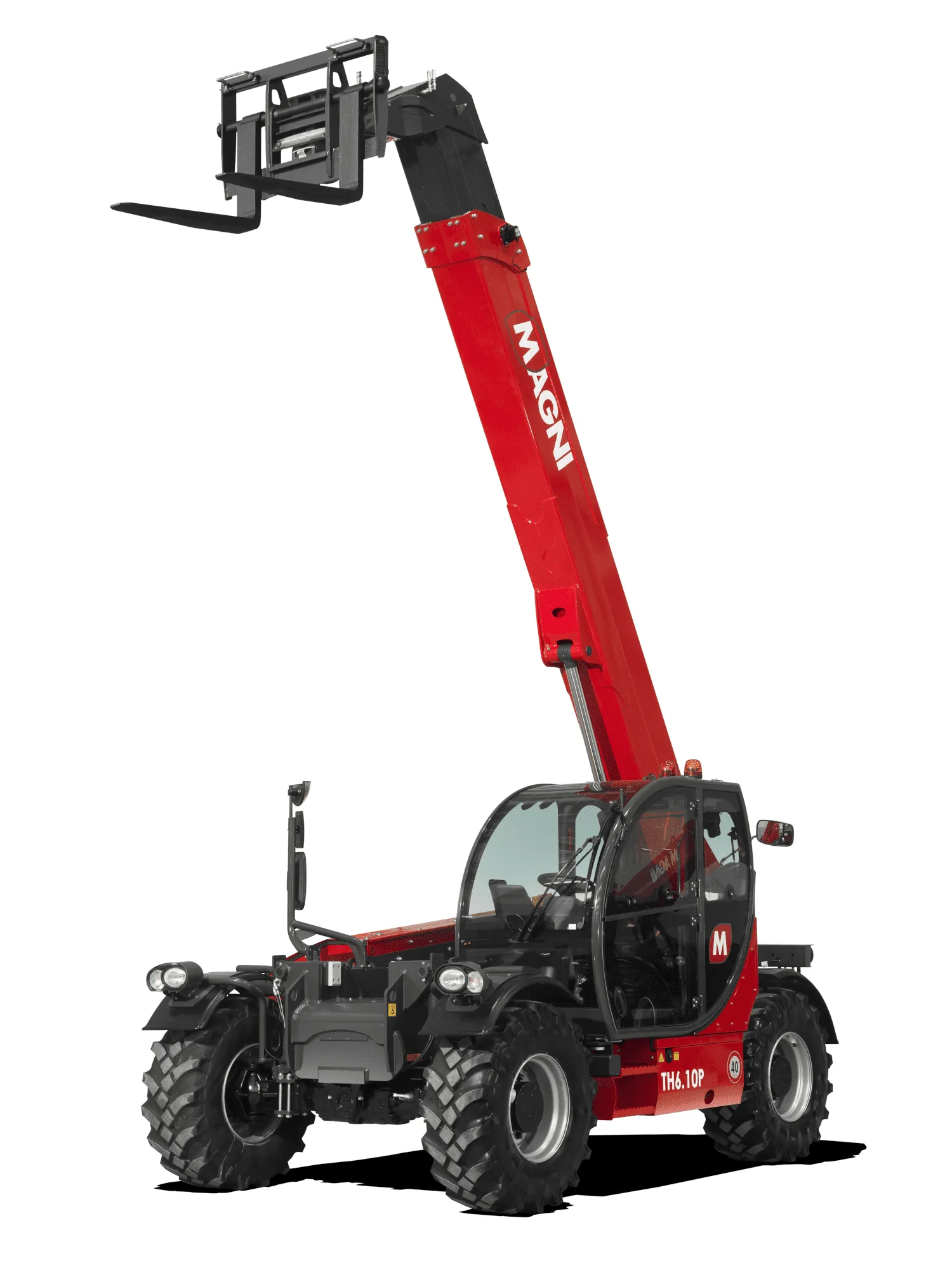

Magni TH 6.10P Telehandler
The Magni TH 6.10P is a premium telehandler with extra safety features like live load charts and attachment recognition, and is compatible with a wide range of attachments.
Powered by a robust Deutz 75 kW engine, the Magni TH6.10P is designed to safely reach a height of 9.70 m. The machine’s 4-wheel drive system enhances its capabilities, ensuring optimal traction and stability across all types of terrain. whether navigating through mud, gravel, or rocky landscapes, the TH6.10P maintains its performance. This combination of Engine power and advances drivetrain technology ensures that the telehandler remains steady while handling heavy loads at elevated positions.
The hydrostatic transmission offers precision and maneuverability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.
This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
Available for long term hire or lease
Technical Features
- Lifting capacity: 6.000 kg
- Capacity at maximum height: 5.500 kg
- Lifting height: 9,80 m
- Reach: 5,70 m
- Engine: Deutz TCD 3,6 L4 Stage V
- Rated power: 74,40 kW (101,20 hp) 2.200 rpm
- Number of gears: 2/2
- Hydraulic system: 350 bar (Load Sensing)
- Length: 6,01 m
- Width: 2,53 m
- Ground clearance: 410 mm
- Unladen weight: 12.000 kg
- Travel speed: 35 km/h
- Air Conditioning: Yes
- Automatic accessory recognition: Yes
ENQUIRE TO HIRE
